Non-tripping residual current:
≤0,5 IΔn
Standard produs:
EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017;EN 61008-2-1:1994 + A11:1998;IEC 61008-1;IEC 61008-2-1;AS/NZS 61008.1
Rated sensitivity IΔn:
300
Lifetime, electric:
2000 Operations
Breaking capacity Im:
500
Trigger time undelayed:
IΔn: ≤300ms;2 x IΔn: ≤150ms;≥5 x IΔn: ≤40ms
Descriere electrică CAD:
25A/2P/30mA/A
Accesorii opționale:
BSB00111-A;BS900112-A
PROMO CODE GER:
2032-0012-71
Terminal type:
Double Mouth Lift Clamp with Back clamps Protection
Stabilitate la impuls de tensiune Uimp:
6kV
Categorie produs:
A (sensibil la curent alternativ și pulsatoriu)
Temperatura maximă a mediului ambiant:
60
Certificates:
VDE for type A in 2 pole version
Max. permissible back-up fuse against short circuit:
63

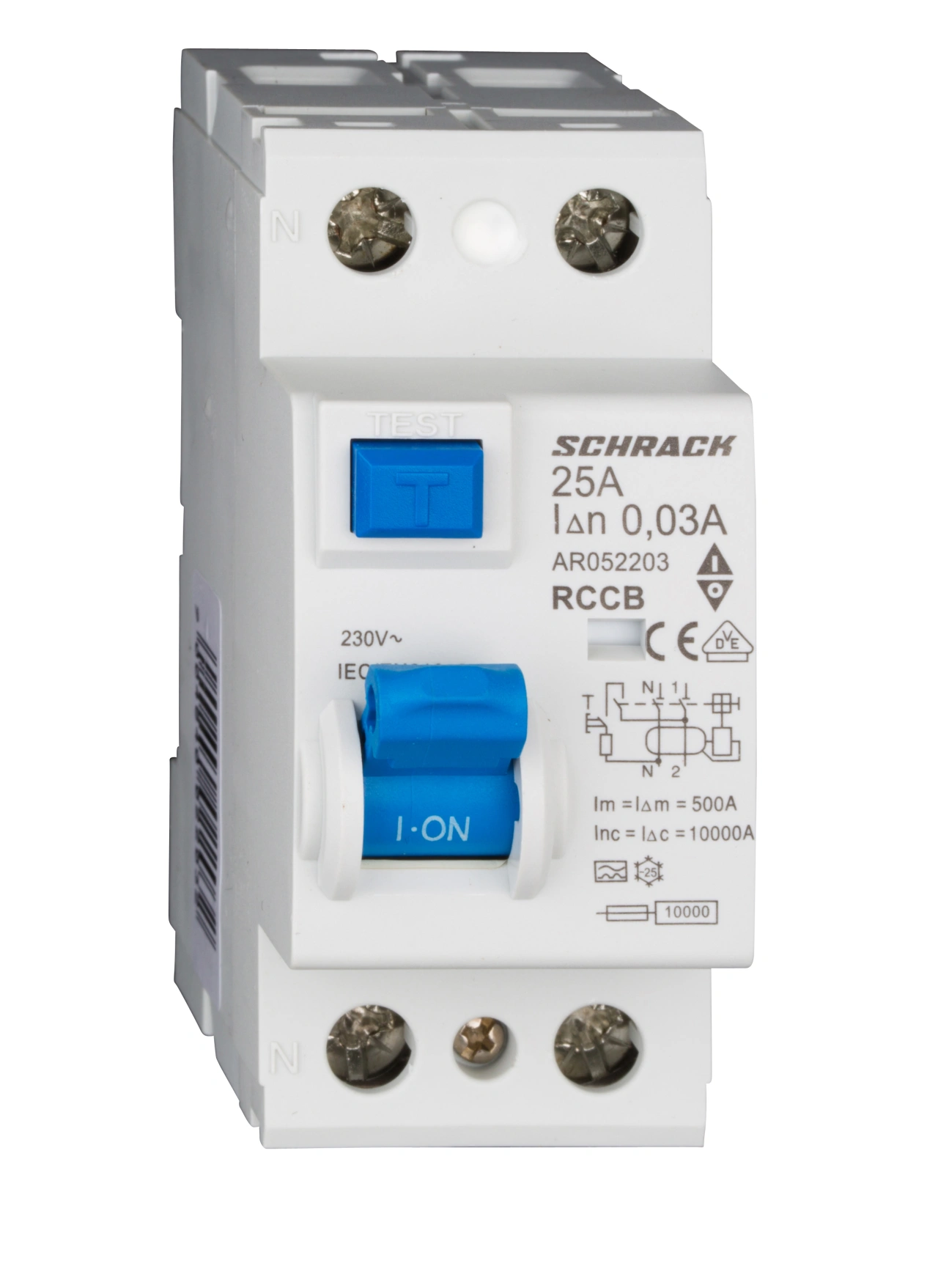

Descriere de bază:
Întreruptor diferenţial
Rezistenţă la scurtcircuit:
10
Capacitate de rupere nominala:
10
Valoare curent de defect :
30
Lifespan, mechanical:
2000 Operations
Dieelectric test voltage at ind. Frequence:
2500
Montaj:
On DIN rail according to EN 60715 (35mm) via quick mounting clip
PROMO CODE CH:
2032-0029-54
PROMO CODE GER INDUSTRY:
2032-00014-21
Max. allowed back-up fuse against thermal overload:
25A: 16A gG
Temperatura minimă a mediului ambiant:
-25
Tensiune nominală:
230V-AC
Conductor masiv:
1,5 - 25
Insulation voltage:
500 V
