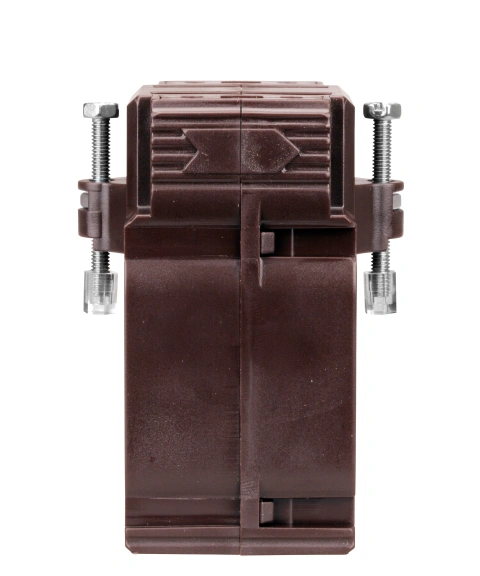

DIN rail:
TH35-15 (EN60715)
Rated dynamic current Idyn:
2.5Ith
Gama de temperatură - Funcţionare:
-25 la +50
Load current error:
For class 0.5 and 5% In: ±1.5%;For class 0.5 and 20% In: ±0.75%;For class 0.5 and 100% In: ±0.5%;For class 0.5 and 120% In: ±0.5%;For class 1 and 5% In: ±3%.;For class 1 and 20% In: ±1.5%;For class 1 and 100% In: ±1%.;For class 1 and 120% In: ±1%
Max. Operating voltage Um:
0.72kV r.m.s.
Domeniul de frecvenţă:
47 - 63Hz
Short-time current Ith:
< 60Ipr
Reference temperature:
23°C ±1°C
Burden:
Class 0.5 (10VA);Class 1 (12VA)
Condiţii climatice:
Suitable for tropical climate
Thermal rated continuous current according to EN60044-1:
##
PROMO CODE CH:
6986-0024-23
Notă:
The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side.
Temperatura maximă a mediului ambiant:
60
Descriere electrică CAD:

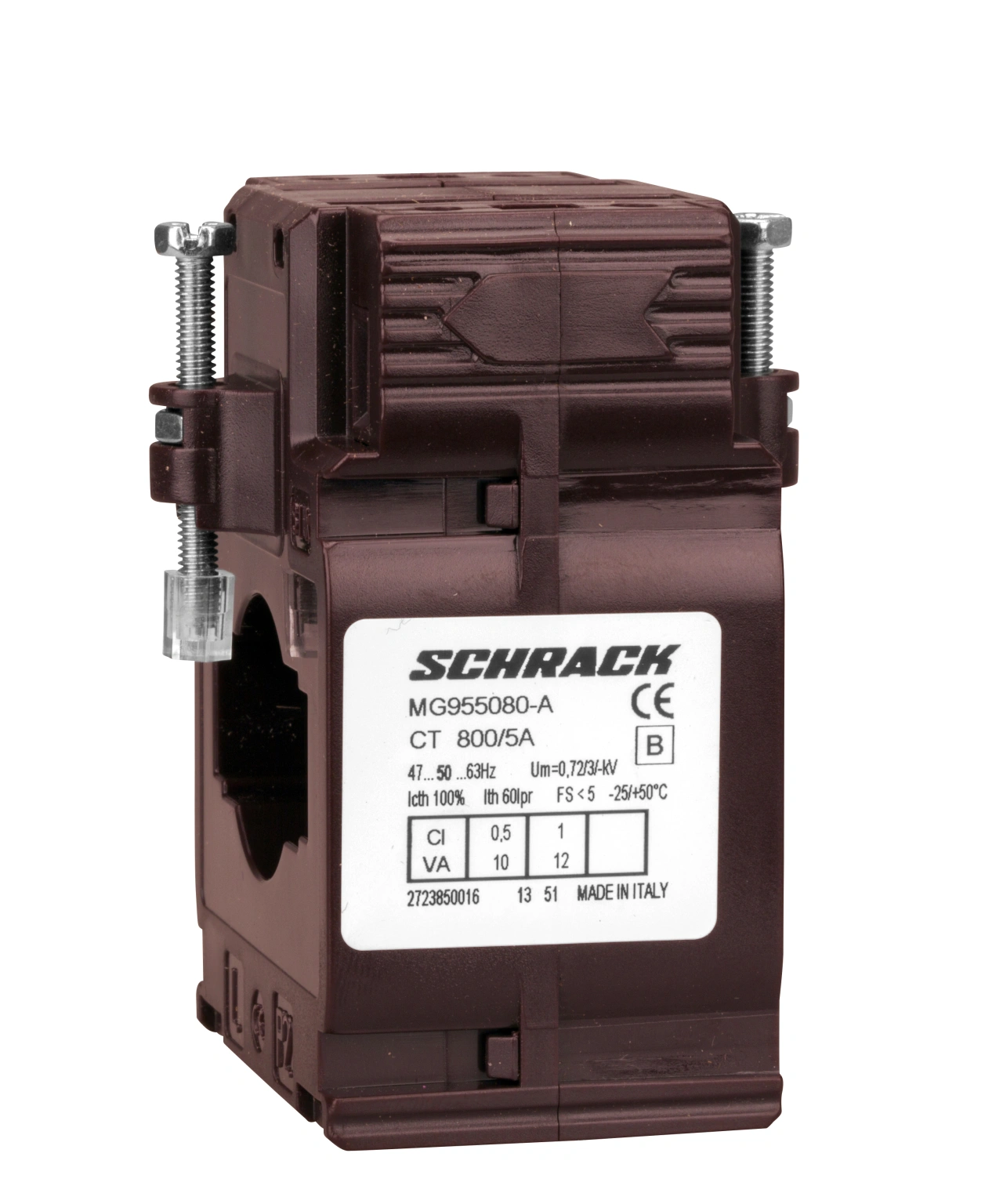

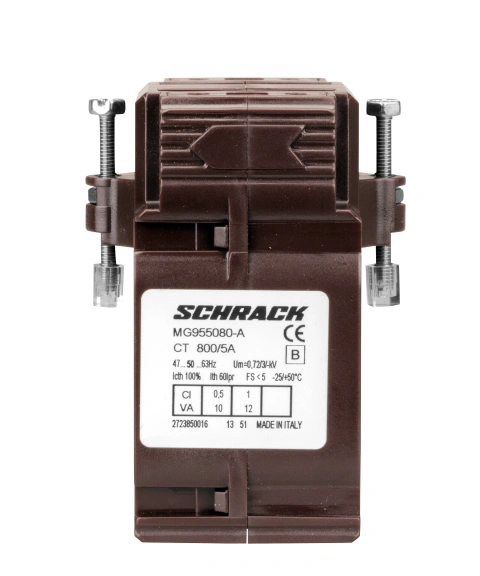

800/5A, 40x10mm
Torque:
busbar fixing: 0,2Nm
Metodă de montaj:
snap-on DIN rail 35 mm;screwable for wall mounting
Gama de temperatură - Transport/Depozitare:
-40 to +85
Daily average temperature:
≤ 30°C
Rated current secondary side Isr:
5A
Housing material:
Polycarbonate, self-extinguishing
Winding primary side:
Cable and busbar feedthrough
Bare colectoare maxim:
40x10
Thermal power loss:
≤ 11.5W at Icth;125°C Maximum temperature cable/busbar.
Insulation requirements:
##
Rated current primary side Ipr:
800
Temperatura minimă a mediului ambiant:
-25
PROMO CODE GER INDUSTRY:
6986-00012-32
Categorie produs:
Normal installation (DIN EN 61869-2)
Accesorii opționale:
MGX20006--;MGX20306--;MGX20406--
Standard produs:
EN 61869-2
Terminal labeling:

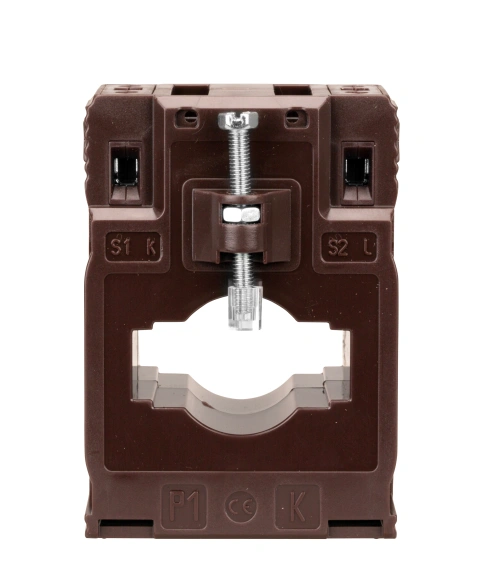

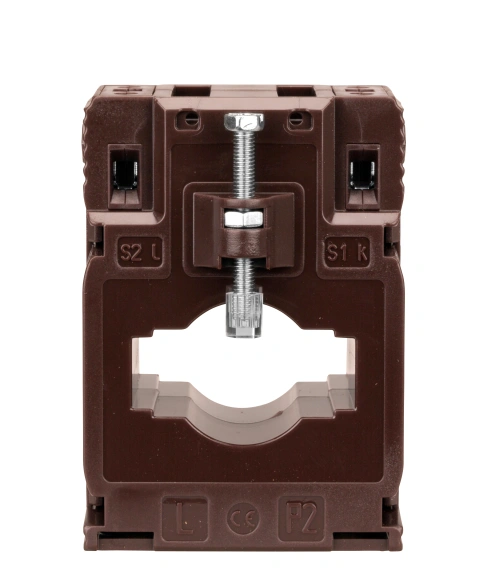

Winding primary side P1(K) - P2(L);Winding secondary side s1(k) - s2(l)
Isolation:
Class B (EN60044-1)
Winding secondary side:
screw terminals 6mm²;Faston 4,8x0,8mm
Intended use:
for copper bars up to 40 x 10mm;for copper bars up to 30 x 15mm;for cables up to diameter 26mm
Isolation test voltage :
3 kV R.M.S. 50 Hz/1min
Versiune:
Dry type transformer, air insulation
