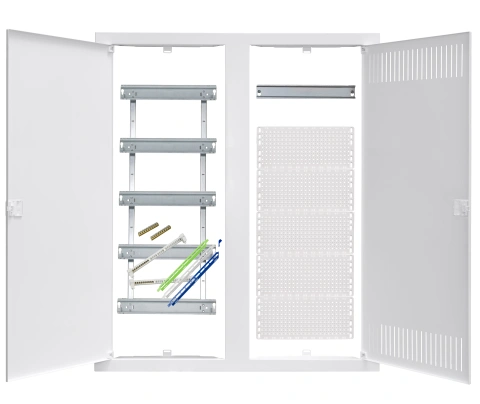

  • Media combi-enclosures for partition wall or solid wall in two versions: horizontal 3- and 4-rows as well as vertical 3- to 5-rows
  • Horizontal designs:

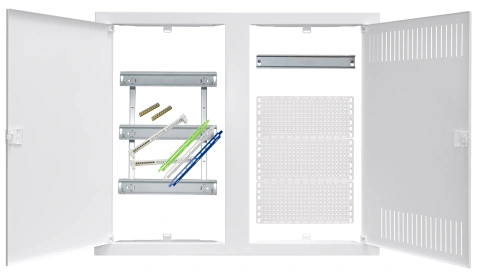

    BK0856032F: 3x DIN-rails (36+6MW) and 3x mounting plates

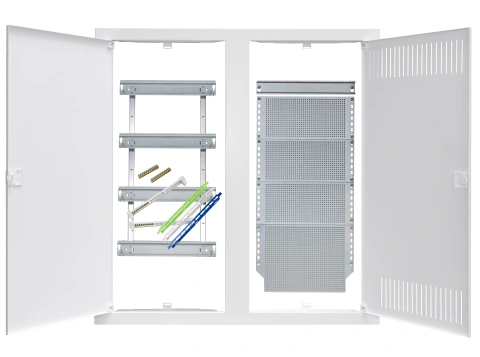

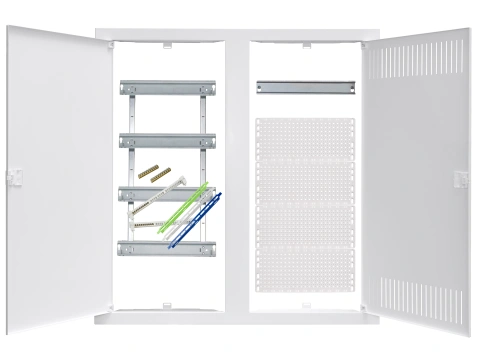

    BK0856042F: 4x DIN-rails (48+8MW) and 4x mounting plates
  • For completion, the following articles are necessary:
    • 1x Frame with door and insert (3- or 4-row)
    • 2x Wall boxes (3- or 4-row for solid wall or partition wall)
    • 1x Wall box brackets horizontal BK085098-A
  • Vertical designs:

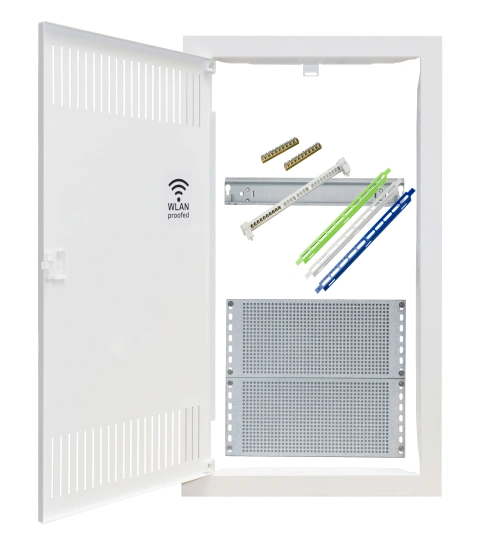

    BK0855032F: 1x DIN-rail (12+2MW), 2x mounting plates and 1x built-in socket

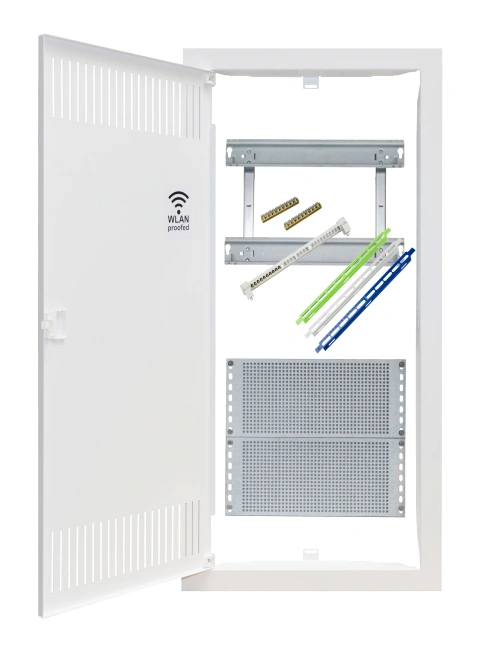

    BK0855042F: 2x DIN-rails (24+4MW), 2x mounting plates and 1x built-in socket

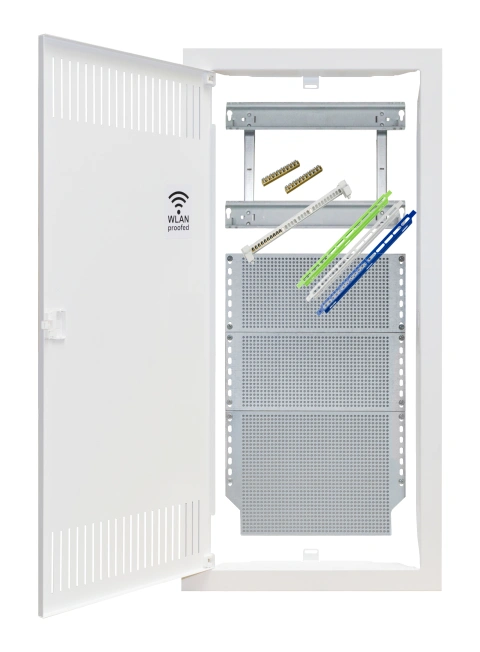

    BK0855053F: 2x DIN-rails (24+4MW), 3x mounting plates and 1x built-in socket

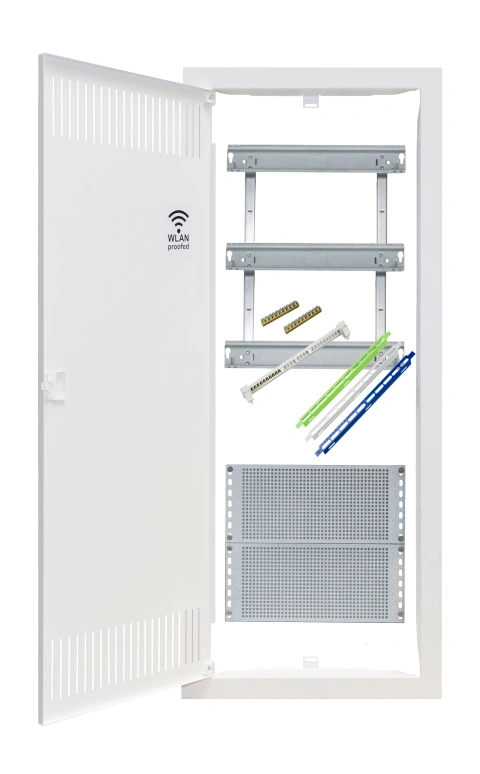

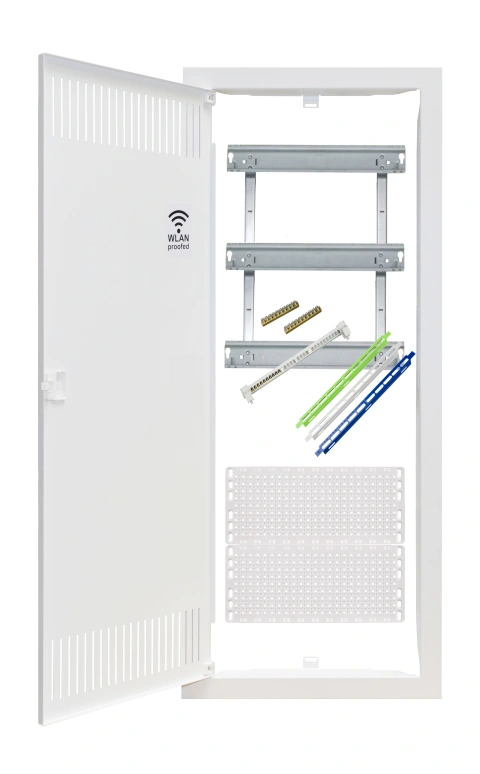

    BK0855052F: 3x DIN-rails (36+6MW), 2x mounting plates and 1x built-in socket
  • For completion, the following articles are necessary:
    • 1x Frame with door and insert (3-, 4- or 5-row)
    • 1x Wall box (3-, 4- or 5-row for solid wall or partition wall)
  • General information:
  • WLAN proofed
  • Frames and doors in coated sheet steel, all doors with door clip
    • Horizontal versions: Media door side with ventilation slots
    • Vertical versions: Door with ventilation slots as standard
  • Frame design high (ca. 6 mm)
  • Mounting plates for active and passive components included
  • Glow wire test:
    Resistant to abnormal heat and fire up to 850 °C for partition wall
    Resistant to abnormal heat and fire up to 650 °C for solid wall
  • Mounting brackets (included):
    • For partition wall (up to 30 mm wall thickness)
    • For solid wall (Dovetail mounting brackets for front or back panel mounting)
  • Protection class: II
  • Degree of protection: IP30
  • Impact Resistance: IK08
  • Color: RAL9003 (Signal white)
